25G MWDM is designed for Open-WDM/MWDM 5G fronthaul solution. It uses MWDM laser and PIN receiver, transmisstion distance up to 10km, supports -40~85℃ industrial temperature. This product features with pilot tone, which enable remote monitoring of modules operation, adminitraton and matainence.
understand more
The SP28-MM850SRx is SFP28 module for duplex optical data communications support 25.78 Gb/s and 28.05 Gb/s data links. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. This module is designed for multi-mode fiber and operates at a nominal wavelength of 850nm.
understand more
The SP28-SM31LR10x is SFP28 module for duplex optical data communications support 25.78 Gb/s and 28.05 Gb/s data links. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. It has built-in dual clock and data recovery (CDR). This module is designed for single-mode fiber and operates at a ominal wavelength of 1310nm.The transmitter section uses a high performance 1310nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector pre-amplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
understand more

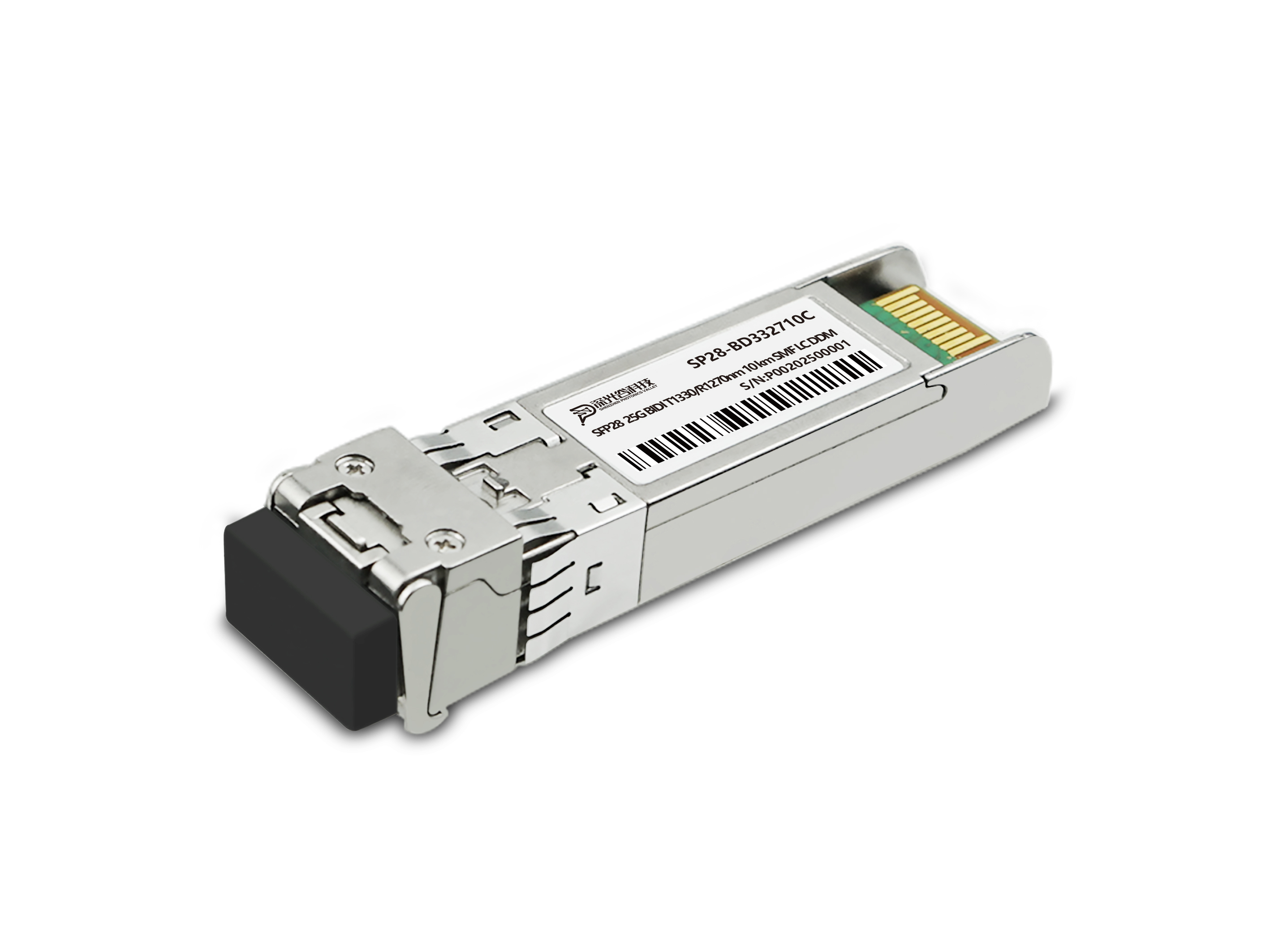

The Photonics Valley’s SP28-BDXXXX10X is designed for Bi-directional 25G serial optical data communications by using DFB laser transmitter and PIN receiver. It is a high performance module for 25G Ethernet and Option 10 CPRI applications which operate up to 10km. This module incorporates Photonics Valley’s proven circuit and technology to provide reliable long life, high performance, and consistent service.
understand more
The Photonics Valley’s SP28-BDXXXX10X is designed for Bi-directional 25G serial optical data communications by using DFB laser transmitter and PIN receiver. It is a high performance module for 25G Ethernet and Option 10 CPRI applications which operate up to 10km. This module incorporates Photonics Valley’s proven circuit and technology to provide reliable long life, high performance, and consistent service.
understand more
The Photonics Valley’s SP28-CWxxLR10x is designed for CWDM 25G serial optical data communications by using DFB laser transmitter and PIN receiver. It is a high performance module for 25G Ethernet and Option 10 CPRI applications which operate up to 10km. This module incorporates Photonics Valley’s proven circuit and technology to provide reliable long life, high performance, and consistent service.
