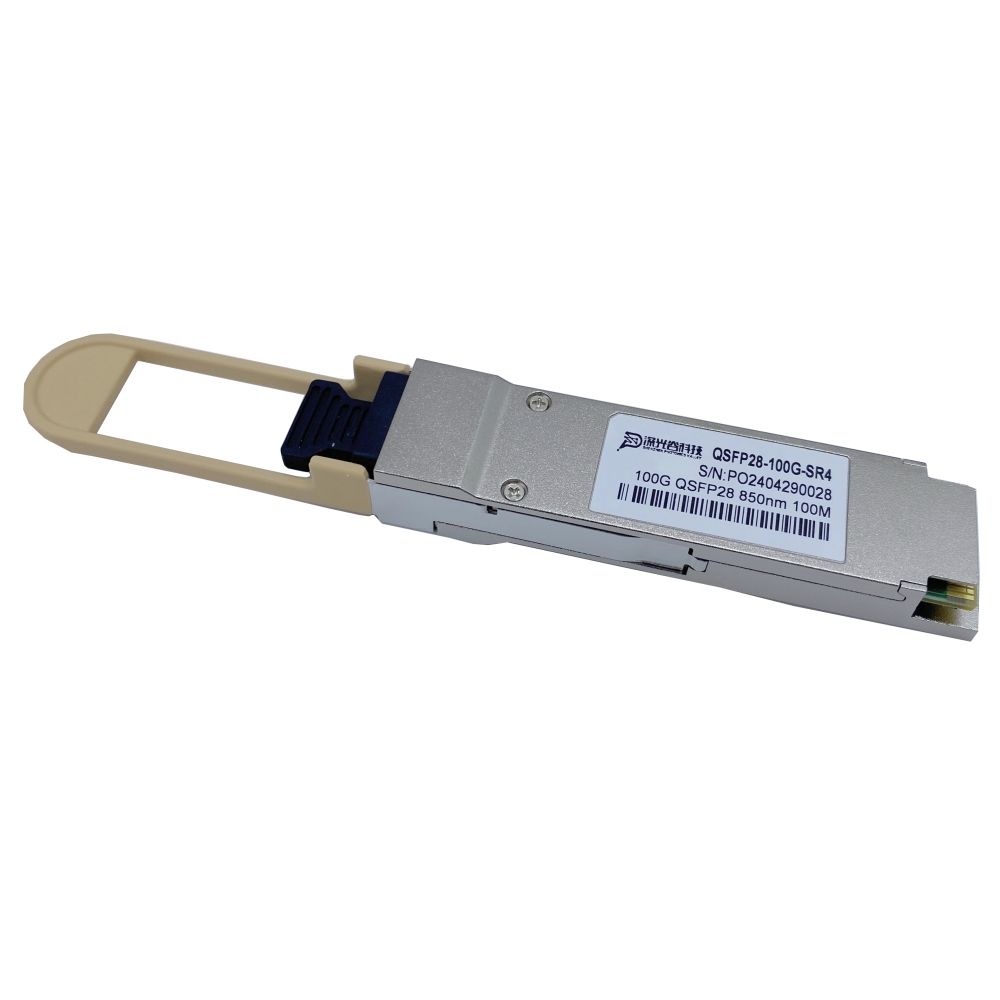

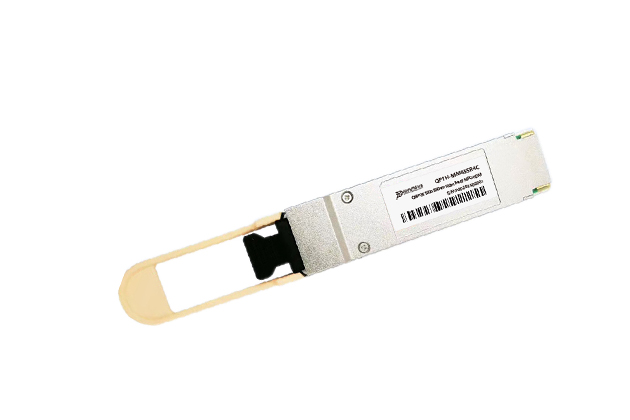

QP1H-MM85SR4C
product description
QP1H-MM85SR4C is QSFP28 module for duplex optical data communications support 25.78 Gb/s per lane data links. It is with the QSFP28 footprint to allow hot plug capability. Digital diagnostic functions are available via an I2C. The transmitter section uses a high performance 850nm VCSEL laser and is a class 1 laser compliant according to International Safety Standard IEC-60825.
- Application
- Performance
- Specification
APPLICATIONS
100GBASE-SR4 Ethernet
InfiniBand QDR, EDR
Data center interconnection
PRODUCT FEATURES
Up to 70m(OM3) and 100m (OM4)
Compliant with QSFP28 MSA SFF-8636
Multi rate of up to 25.78125Gbps
single power supply 3.3V
Support 100GBASE-SR4 100G Fiber Channel
Operating case temperature
Commercial: 0 to 70 °C
RoHS 6 compliant
Ordering information
Part Number | Product | Data rate | wavelength | Laser Type (TX/RX) | Power Budget | Fiber Type | Distance | Temp |
| QP1H-MM85SR4C | QSFP28 SR4 | 103Gbps | 850nm | VCSEL/PIN | 4.3dB | MMF | 70m/OM3, 100m/OM4 | 0~70℃ |
