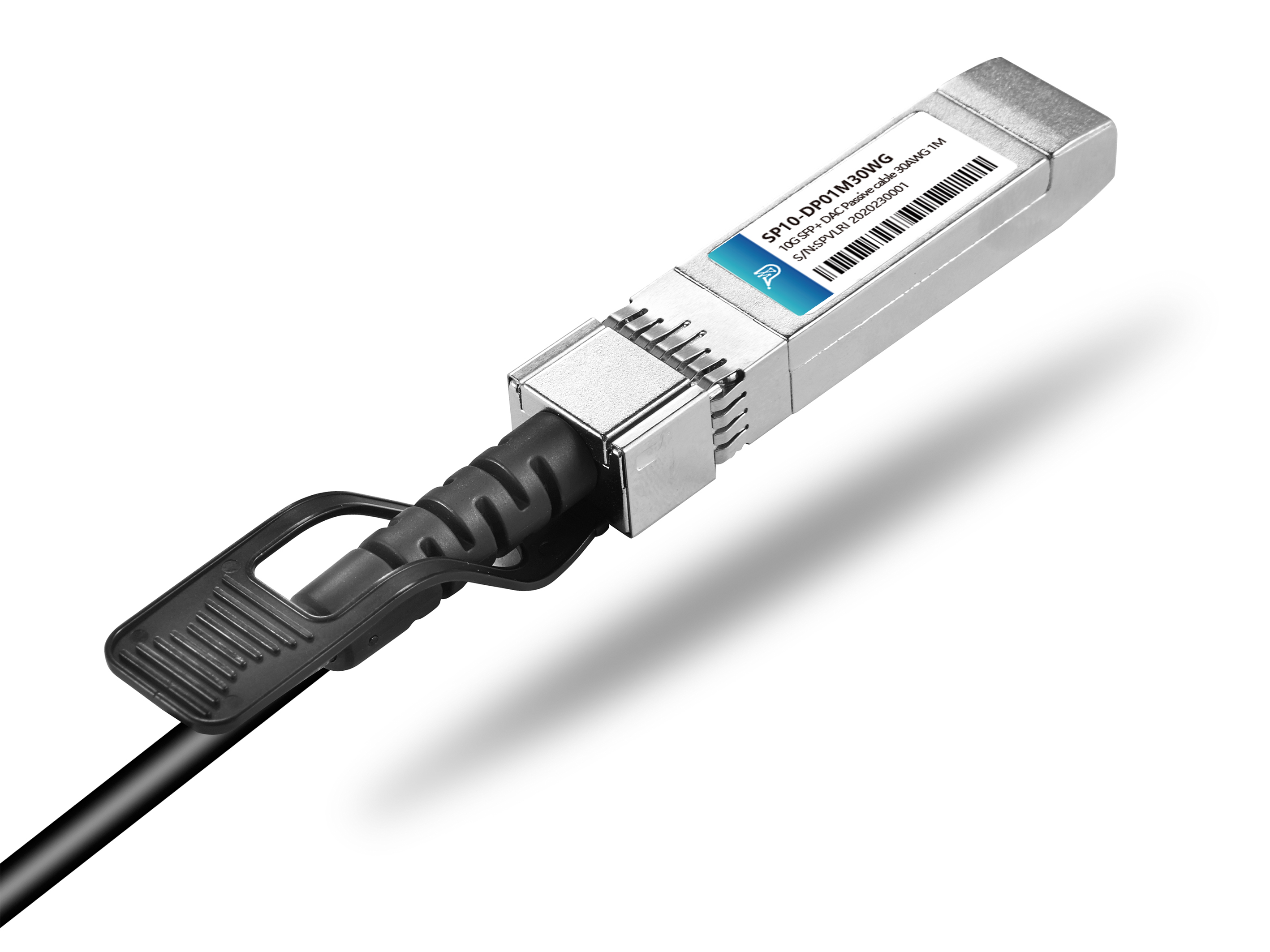

SP10-DPxMxxWG

product description

The SFP+ passive cable assemblies are high performance, cost effective I/O solutions for 10G Ethernet. SFP+ copper cables allow hardware manufactures to achieve high port density, configurability and utilization at a very low cost and reduced power budget.
  • Application
  • Performance
  • Specification

APPLICATIONS


  • 10G Ethernet

  • Networked storage systems

  • Hubs, Switches, Routers, Servers



PRODUCT FEATURES


  • Up to 10.3125 Gbps data rate

  • Up to 10 meter transmission

  • Compliant with SFF-8431, 8432 and 8472

  • Temperature Range: 0~ 70 °C

  • RoHS compliant


Ordering information


Part Number

Product

Data rate

Length

Temp

SP10-DPxxM30WGSFP+ DAC passive10Gbps0.5~5m0~70℃
SP10-DAxxM26WGSFP+ DAC Active10Gbps5~10m0~70℃

Note: xxM denotes copper cable length in meter, xx=01M for 1 meter, xx=02M for 2 meters, etc., for up to the length limit.
