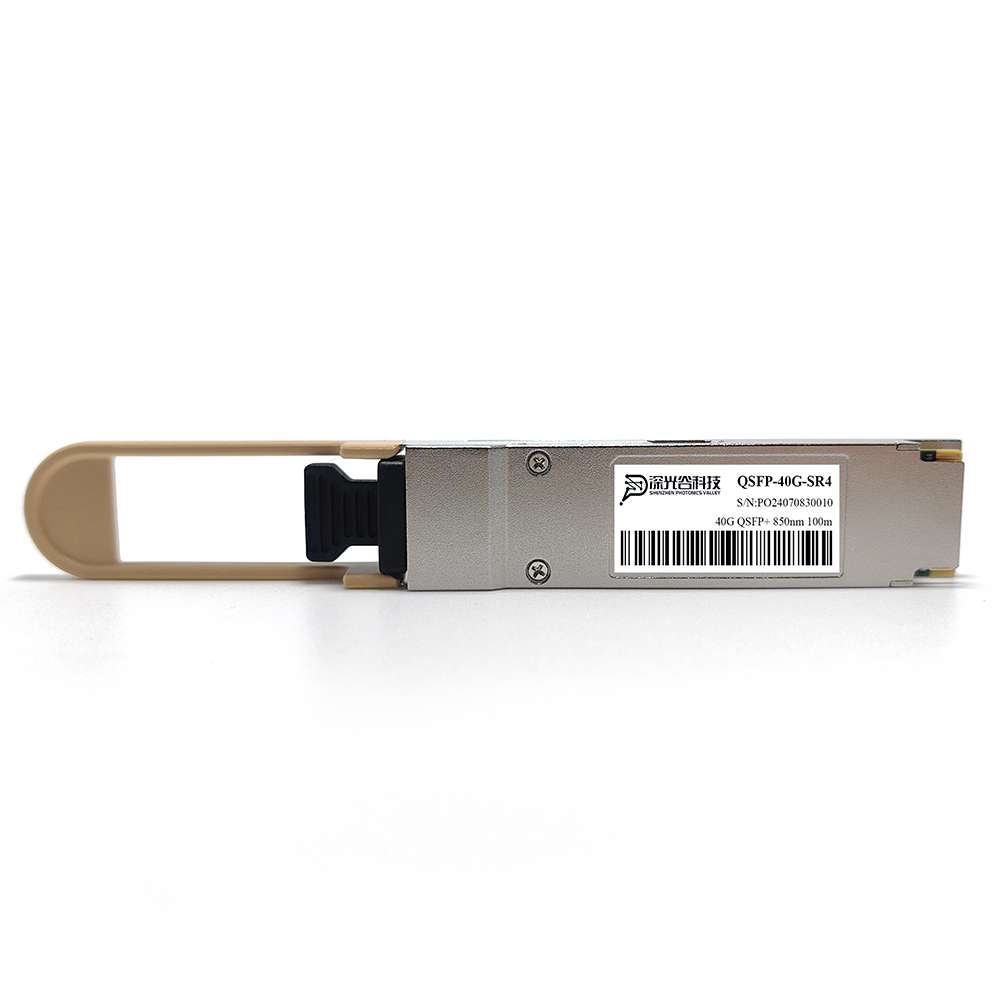

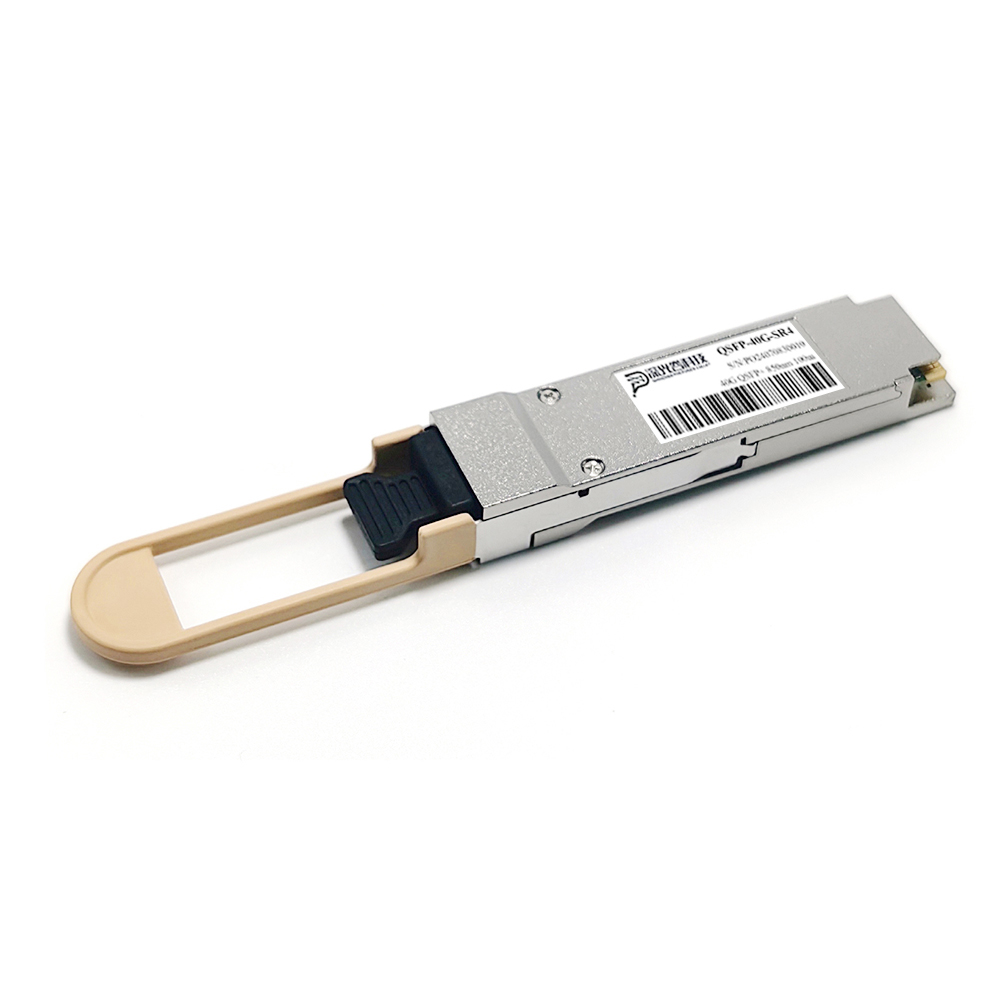

QP40-MM85SR4C
product description
Photonics Valley’s QP40-MM85SR4C is designed to meet the requirements of 40G ethernet including breaking out to 10G SR links over OM3 MMF up to 300m. It is compliant with QSFP+ MSA, IEEE 802.3ba. It is cost- effective, low power consumption with a single 3.3V power supply. It is fabricated with all-metal and compact size housing for superior EMI performance.
- Application
- Performance
- Specification
APPLICATIONS
40G BASE-SR4 Ethernet
InfiniBand QDR/DDR
Data centers Switches to Routers
PRODUCT FEATURES
Hot Pluggable QSFP+ form factor
Up to 100m on OM3
Supports bit rate up to 10.3125Gb/s per lane
Single MPO12 interface
Low power consumption <1.5W
Single +3.3V power supply
Operating case temperature:0 to 70 °C
RoHS compliant
Ordering information
Part Number | Product | Data rate | wavelength | Laser Type (TX/RX) | Power Budget | Fiber Type | Distance | Connector | Temp |
| QP40-MM85SR4C | QSFP+ SR4 | 40Gbps | 850nm | VCSEL/PIN | 3.5dB | MMF | 100m/OM3, 150m/OM4 | MPO | 0~70℃ |
