800G OSFP SR8
product description

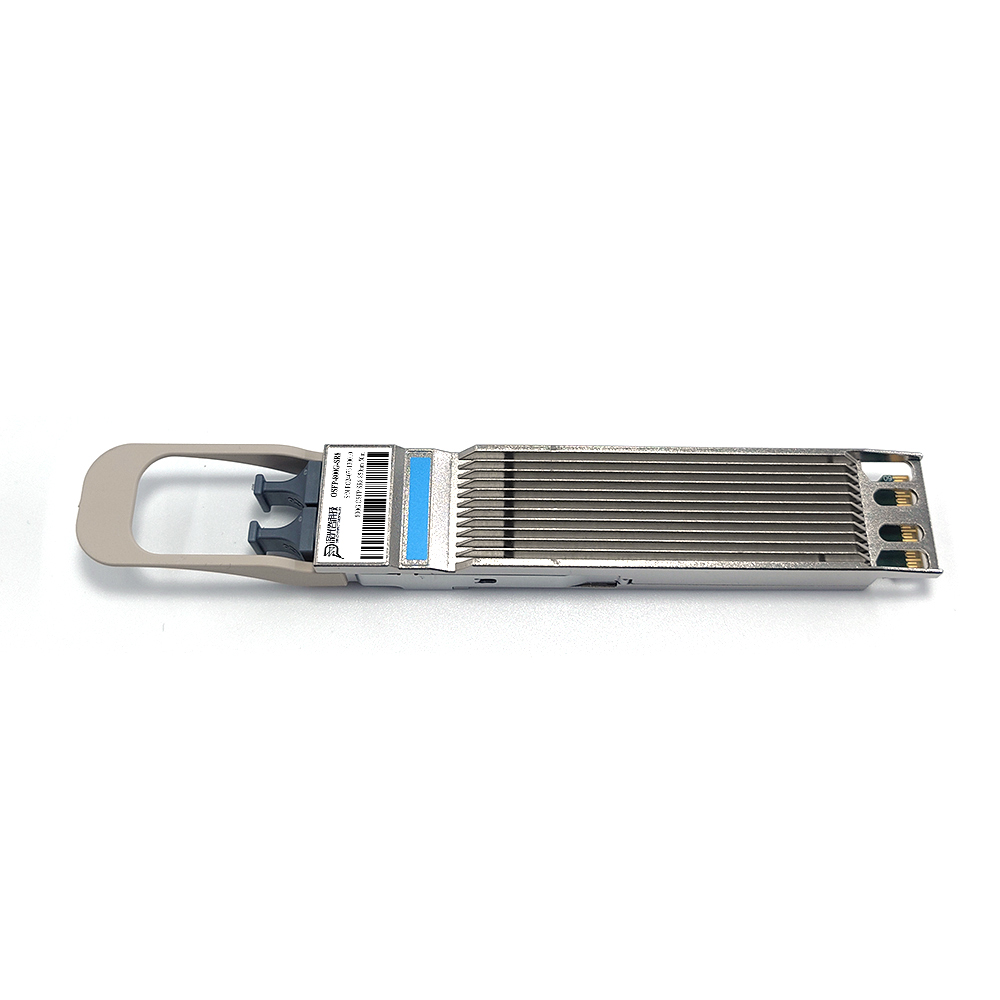

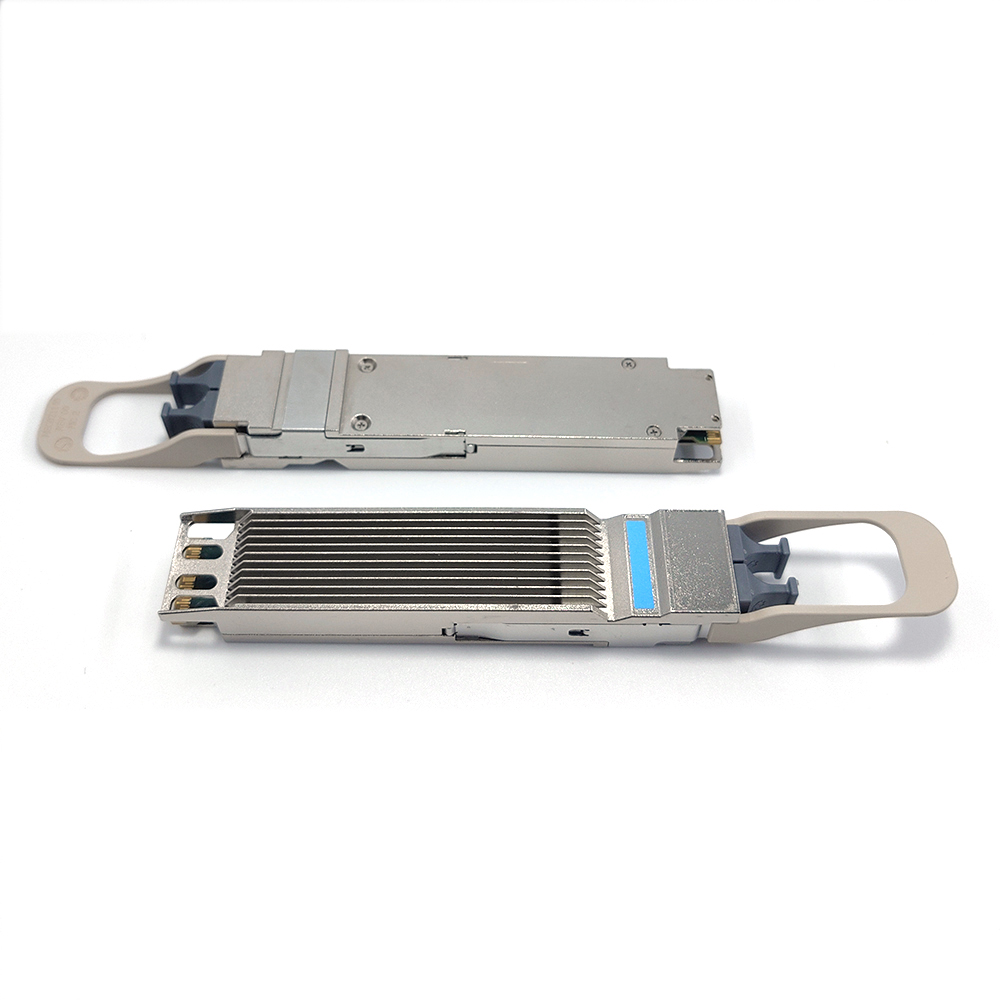

Shenzhen Photonics Valley’ s OSFP-800G-SR8 OSFP transceiver modules are designed for use in 2x400 Gigabit Ethernet or InfiniBand links up to 100m of multi-mode fiber. They are compliant with the OSFP MSA, IEEE802.3db6 and IEEE802.3ck7 . Digital diagnostic functions are available via the I2C interface, as specified by the OSFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-20382,3
- Application
- Performance
- Specification
* InfiniBand NDR
* 800G SR8/VR8 application with FEC
* 2x400G SR4/VR4 applications with FEC
* 8 x 100GbE breakout applications
* Hot-pluggable OSFP Type2 form factor
* with closed top heat sink
* Support 2x425Gb/s aggregate bit rate
* Power dissipation <16W
* RoHS Compliant
* Laser Eye Class 1M
* Case temperature range of 0°C to +70°C (C-temp)
* Single 3.3V power supply
* Aligned with IEEE 802.3db
* 8x100G PAM4 retimed 106.25Gb/s
* PAM4 electrical interface aligned to IEEE 802.3ck
* Dual MPO-12 APC receptacles
* I2C management interface
| Part Number | Product | Data rate | Wavelength | Distance | Temp |
| QP8H-MM85SR8 | OSFP-800G-SR8 | 800Gb | 850nm | 50m over OM4 | 0°C~+70°C |
