AP1H4X-MM85xxM
product description

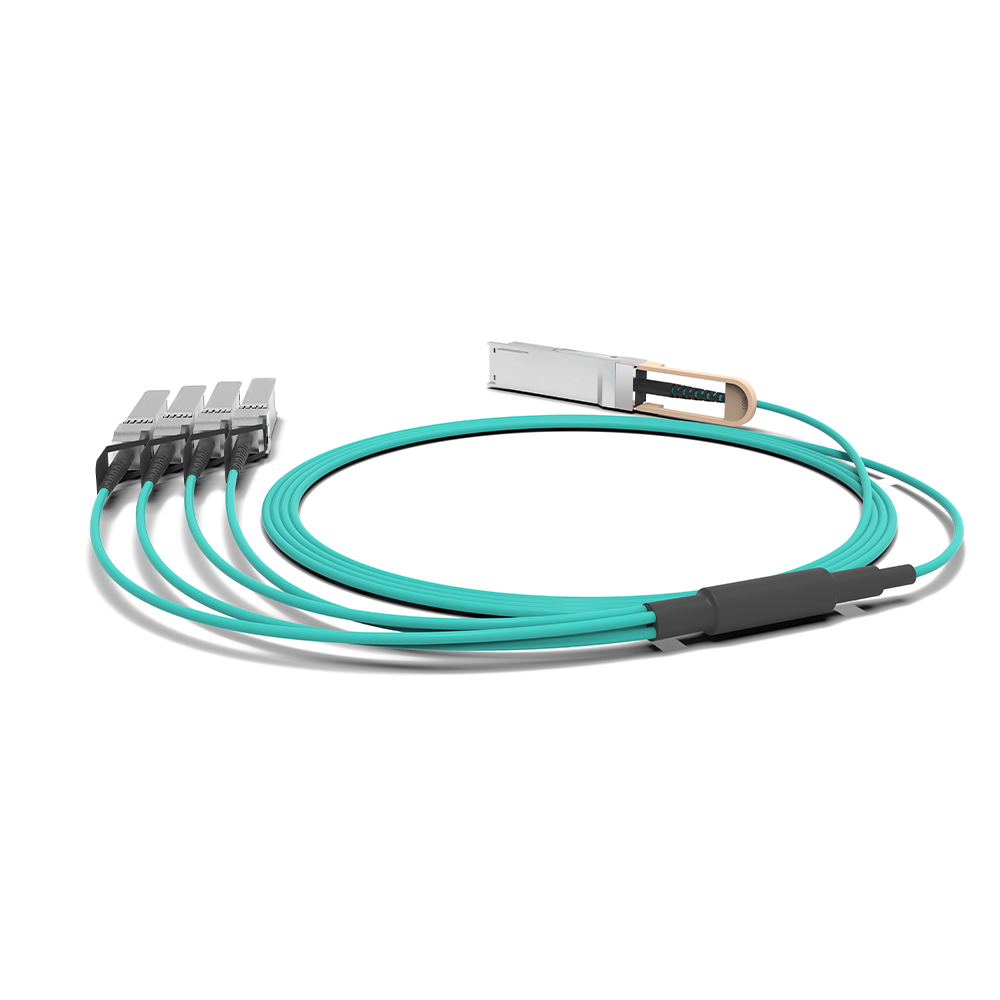

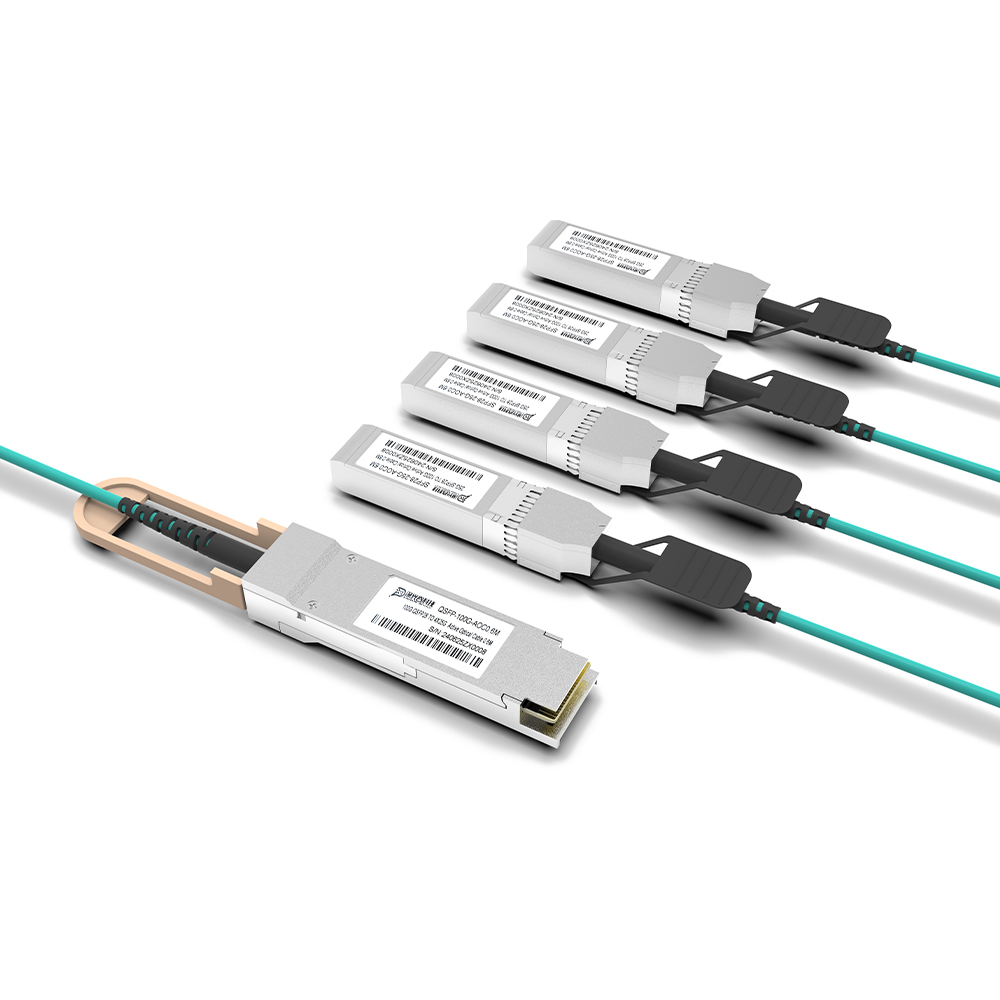

Photonics Valley’s AP1H4X-MM85xxM is active optical cable assemblies with QSFP28+ to 4 SFP28 hot pluggable connectors. Enjoys low power consumption. It is suitable for short distance and offer a cost-effective way to connect within racks and across adjacent racks. Its length is up to 100m over OM3.
- Application
- Performance
- Specification
APPLICATIONS
100GBASE-SR4
InfiniBand QDR, EDR
Datacom and Telecom switch and router backplane connections
PRODUCT FEATURES
Support 100GBASE-SR4,InfiniBand EDR
Multi rate of up to 100Gbps
QSFP28 interface compliant with SFF-8636
SFP+ interface compliant with SFF-8431 and SFF- 8472
Single power supply 3.3V
Distance up to 70m over MMF
Operating case temp 0°C to +70 °C
RoHS compliant
Ordering information
Part Number | Product | Data rate | wavelength | Length | Temp |
AP1H4X-MM85xxM | QSFP28 to 4*25G SFP28 | 100G to 4*25G | 850nm | 1~70m | 0~70℃ |
Note: xxM denotes for length in meters, 01M for 1meter, 02M 2meters, 10M 10meters.etc..
