Multi-core Fiber Coupling Connector

product description

The multi-core and Few-mode 3D waveguide coupler developed by Company has realized multi-mode multiplexing of multi-core fiber for the first time, and the coupling loss is less than 2DB, which greatly reduces the difficulty of multi-core fiber coupling.
  • Application
  • Performance
  • Specification

APPLICATIONS


  • Spatial-division multiplexing   communication

  • Optical couplers and network   devices

PRODUCT FEATURES


  • Compact package

  • LC/UPC connectors

  • LP01, LP11a, and LP11b  mode transmission is supported

  • Fan-in Fan-out device for few-mode   7-core fiber

  • Insertion loss less than 3 dB

  • High mode extinction ratios

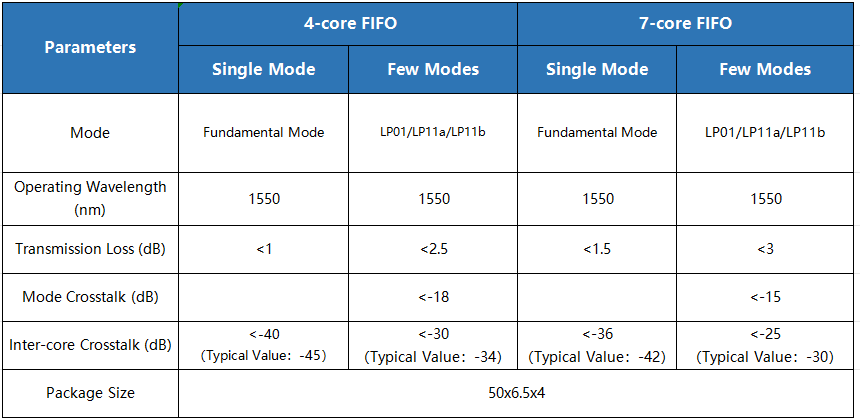

Parameter


4-core FIFO


7-core FIFO


单模少模单模少模
模式基模LP01/LP11a/LP11b基模LP01/LP11a/LP11b
工作波长(nm)1550155015501550

插入损耗(dB)

< 1.5

<2.5

<2

<3
模式串扰(dB)
< -18
< -15
芯间串扰(dB)

<-40

(典型值:-45)

<-30

(典型值:-34)

<-36

(典型值:-42)

<-25

(典型值:-30)

封装尺寸(mm)

60x40x3560x40x3560x40x3560x40x35


Ordering information

MCC

通道数目(Channel)

模式数目(Mode)

光纤接口(Port)

MCC-C-M-P

(MCC-4-1-LC)

4=4芯光纤

7=7芯光纤

1=基模

3=基模+1阶模

LC

UPC
