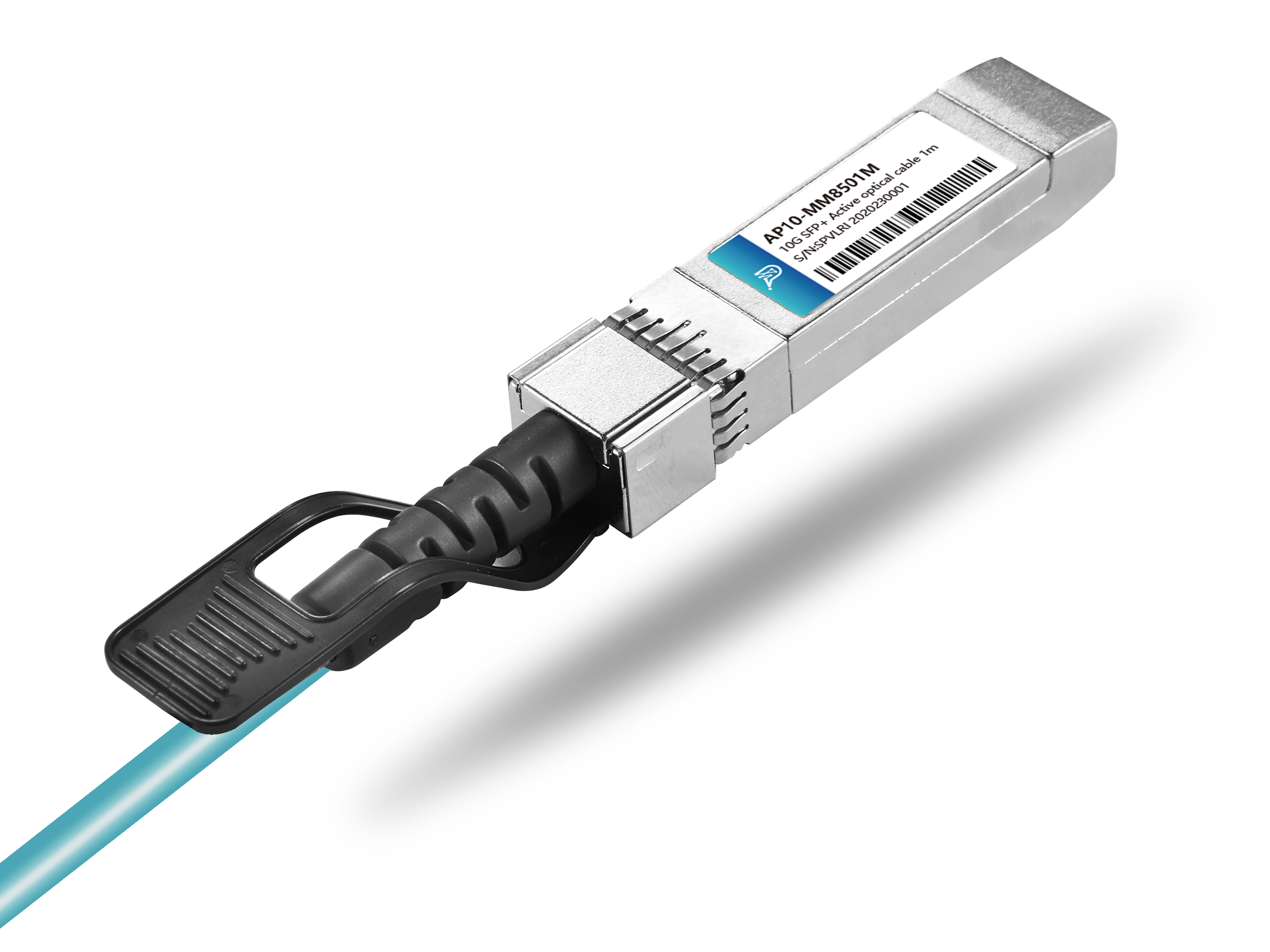

AP10-MM85xxM
product description
Photonics Valley’s AP10-MM85xxM is active optical cable assemblies with SFP+ connectors. Enjoys low power consumption. It is suitable for short distance and offer a cost-effective way to connect within racks and across adjacent racks. Its length is up to 300 meters on OM3 MMF.
- Application
- Performance
- Specification
APPLICATIONS
10 Gigabit Ethernet
4G/8G Fiber Channel
InfiniBand QDR. DDR, SDR
Servers, switches, storage host card adapters and datacente
PRODUCT FEATURES
Up to 300m on OM3 MMF
Interface compliant to SFF-8431
Operating case temperature 0°C to 70°C
Low power consumption <0.35W per end
Power supply 3.3 V
RoHS 6 compliant
Advanced firmware allows encryption
RoHS compliant
Ordering information
Part Number | Product | Data rate | wavelength | Length | Temp |
| AP10-MM85xxM | SFP+ AOC | 10.3Gbps | 850nm | 1~100m | 0~70℃ |
Note: xxM denotes for length in meters, 01M for 1meter, 02M 2meters, 10M 10meters.etc..
