SP28-MM850SRx
product description

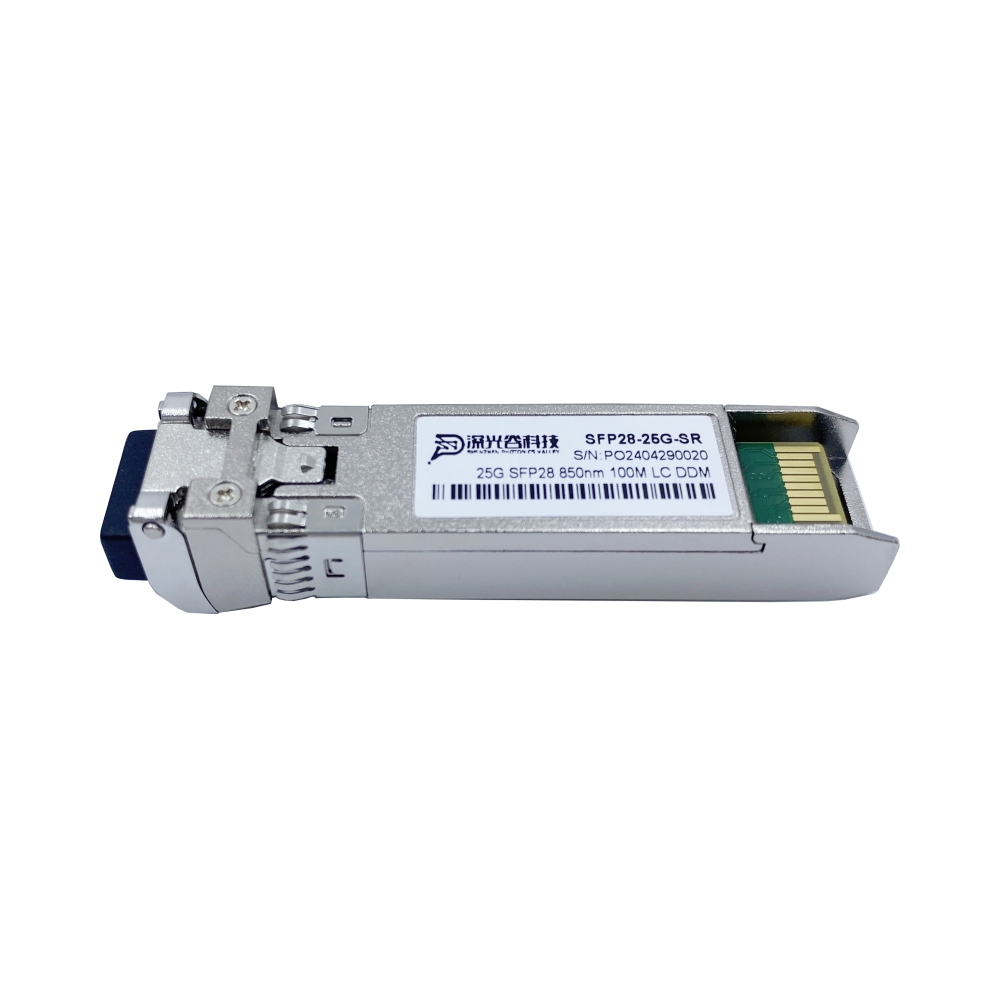

The SP28-MM850SRx is SFP28 module for duplex optical data communications support 25.78 Gb/s and 28.05 Gb/s data links. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. This module is designed for multi-mode fiber and operates at a nominal wavelength of 850nm.
- Application
- Performance
- Specification
APPLICATIONS
25GBASE-SR
32G Fiber Channel
Data center interconnection
PRODUCT FEATURES
Supports 25.78Gb/s bit rate
850nm VCSEL laser and PIN photo-detector
Up to 70m on OM3 and 100m OM4
Digital diagnostics functions
+3.3V single power supply
Power consumption <1W
RoHS compliant
Operating case temperature:
Commercial:0°C to +70°C
Industrial: -40°C to +85°C
Ordering information
Part Number | Product | Data rate | wavelength | Laser Type (TX/RX) | Power Budget | Media Type | Distance | Temp |
| SP28-MM85SRC/I | SFP28 SR | 25.78 Gbps | 850nm | VCSEL/PIN | 5.3dB | MMF | 100m | 0~70℃/-40~85℃ |
