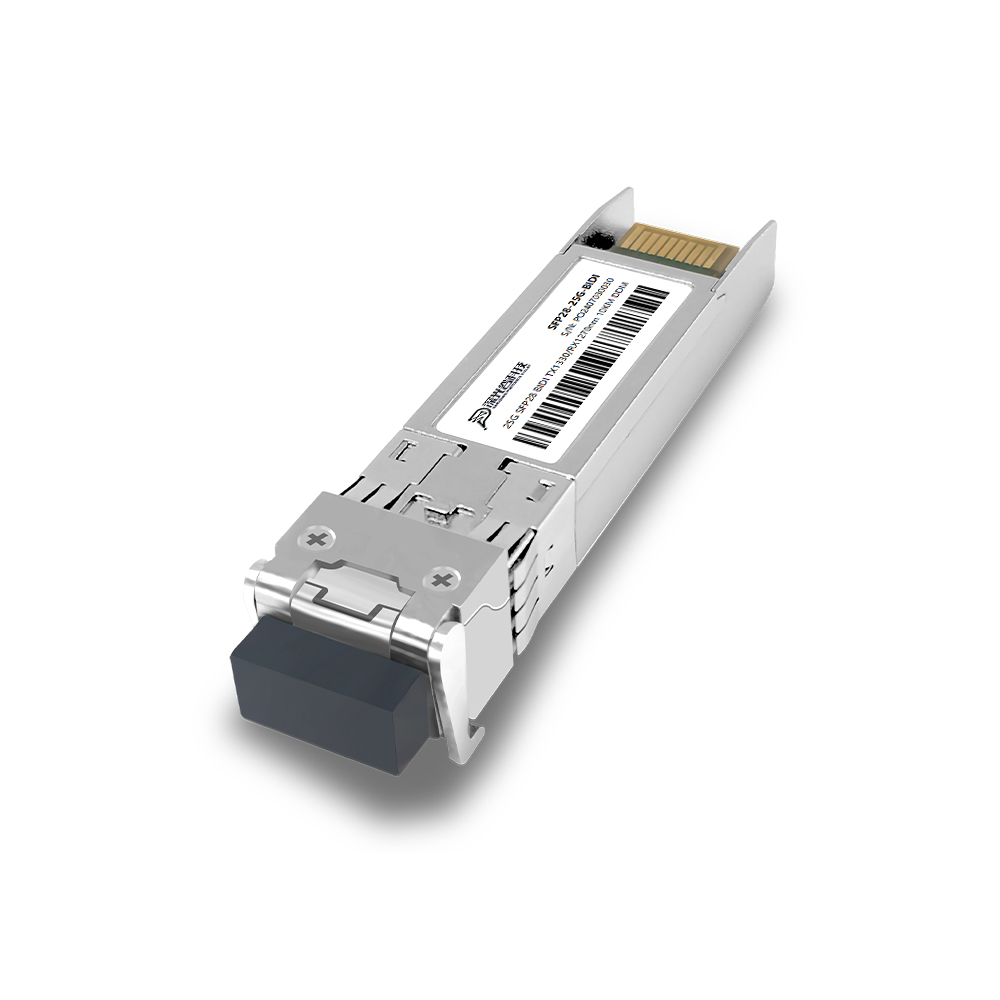

SP28-BD332710x

product description

The Photonics Valley’s SP28-BDXXXX10X is designed for Bi-directional 25G serial optical data communications by using DFB laser transmitter and PIN receiver. It is a high performance module for 25G Ethernet and Option 10 CPRI applications which operate up to 10km. This module incorporates Photonics Valley’s proven circuit and technology to provide reliable long life, high performance, and consistent service.
purchase intention Manual download
  • Application
  • Performance
  • Specification

APPLICATIONS


  • 25GBASE-LR Ethernet

  • eCPRI and CPRI


PRODUCT FEATURES


  • Up to 25.78Gbps Data Links

  • Up to 10km transmission on SMF

  • Single LC receptacle,Bi-directional

  • DFB Laser and PIN receiver

  • A Type: 1270nm TX/1330nm RX

  • B Type: 1330nm TX/1270nm RX

  • Build-in dual CDR , for lower EMI

  • Digital diagnostics functions are available via the   I2C Interface

  • Hot-pluggable SFP28 footprint

  • Specifications compliant with SFF 8472

  • Compliant with SFF-8402 with LC connector

  • Single 3.3V power supply

  • Power dissipation < 1.2W

  • Case operating temperature:

              Commercial:0°C to+70°C

              Extended: -10°C to +85°C

              Industrial: -40°C to +85°C




Ordering information


Part Number

Product

Data rate

wavelength

Laser Type

(TX/RX)

Power

Budget

Media

Type

Distance

Temp

SP28-BD332710C/ISFP28 BIDI 10km25.78 Gbps

T1330/R1270nm

DFB/PIN11dBSMF10km

0~70℃/-40~85℃
