空分复用设备

产品概述

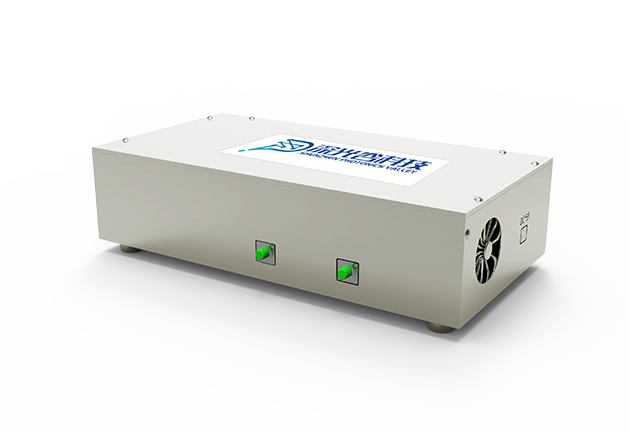

深光谷科技自主研发的MDMS Series空分复用设备集成了4/6模模式复用器,光收发模块和PCB的空分复用光通信设备,支持7芯、4/6个模式
  • 应用场景
  • 性能特点
  • 型号参数

APPLICATIONS


  • Mode-division multiplexing

  • Multi-parameter distributed fibre sensing

PRODUCT FEATURES



  • Compact package

  • LC/APC connectors

  • Mode-group selective excitation of  4/6 modes: LP01, LP11a, LP11b, LP21a  LP21b, LP02

  • O band and C+L band operation

  • IL with typical 4.5/5.5dB, Max. 6/7dB

  • High mode extinction ratios

  • Supports 4/6-channel 10G/25G bit rate

  • Voltage 5V input





Parameter


MDMS-4

MDMS-6

模式LP01/LP11a/ LP11b/LP21aLP01/LP11a/LP11b/ LP21a/LP21b/LP02
工作波长(nm)1550/13101550

插入损耗(dB)

典型值:4.5

最大值: 6

典型值:5.5

最大值:7

模式串扰(dB)< -22< -20

封装尺寸(cm)

29*15*729*15*7


Ordering information

MDMS

模式数目(Mode)

工作波长

Wavelength

光纤接口

Port

MDMS-4

MDMS-6

4=4个模式

6=6个模式

C+L=C+L Band

O=O Band

LC

APC
