AP40-MM85xxM
product description

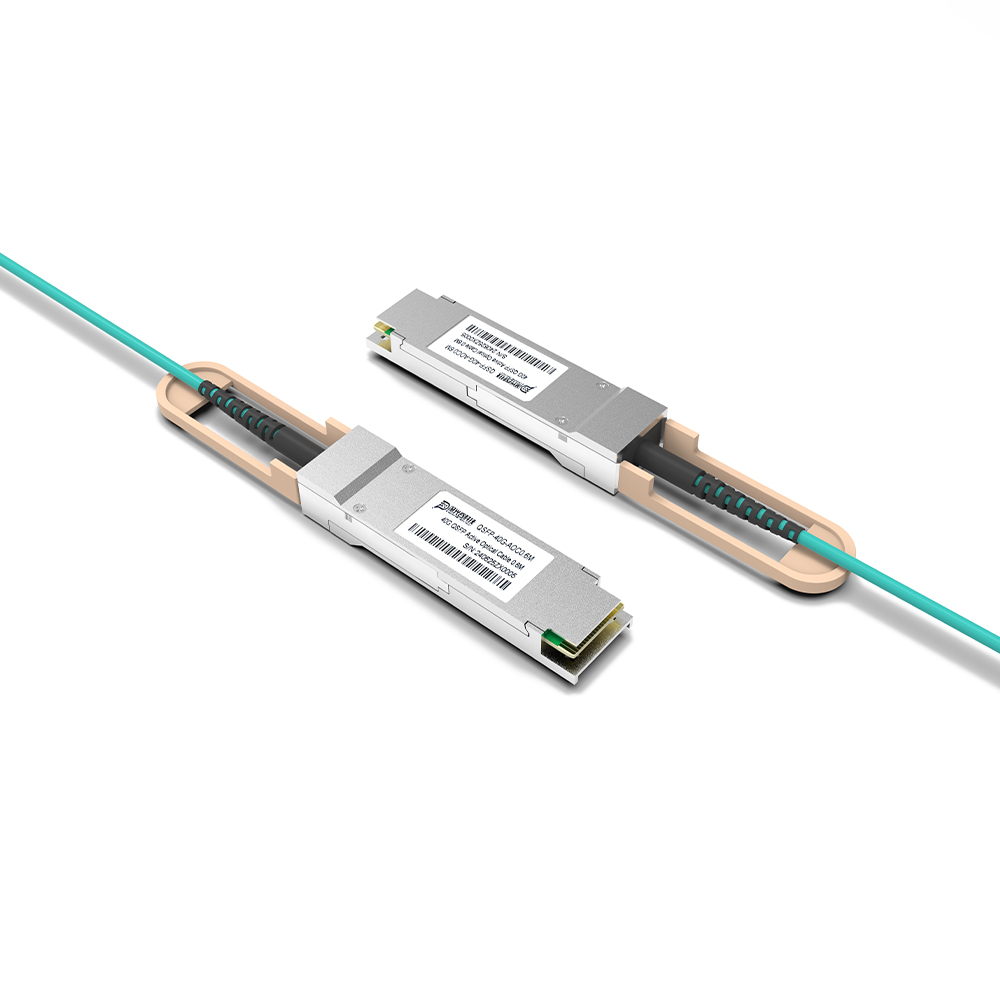

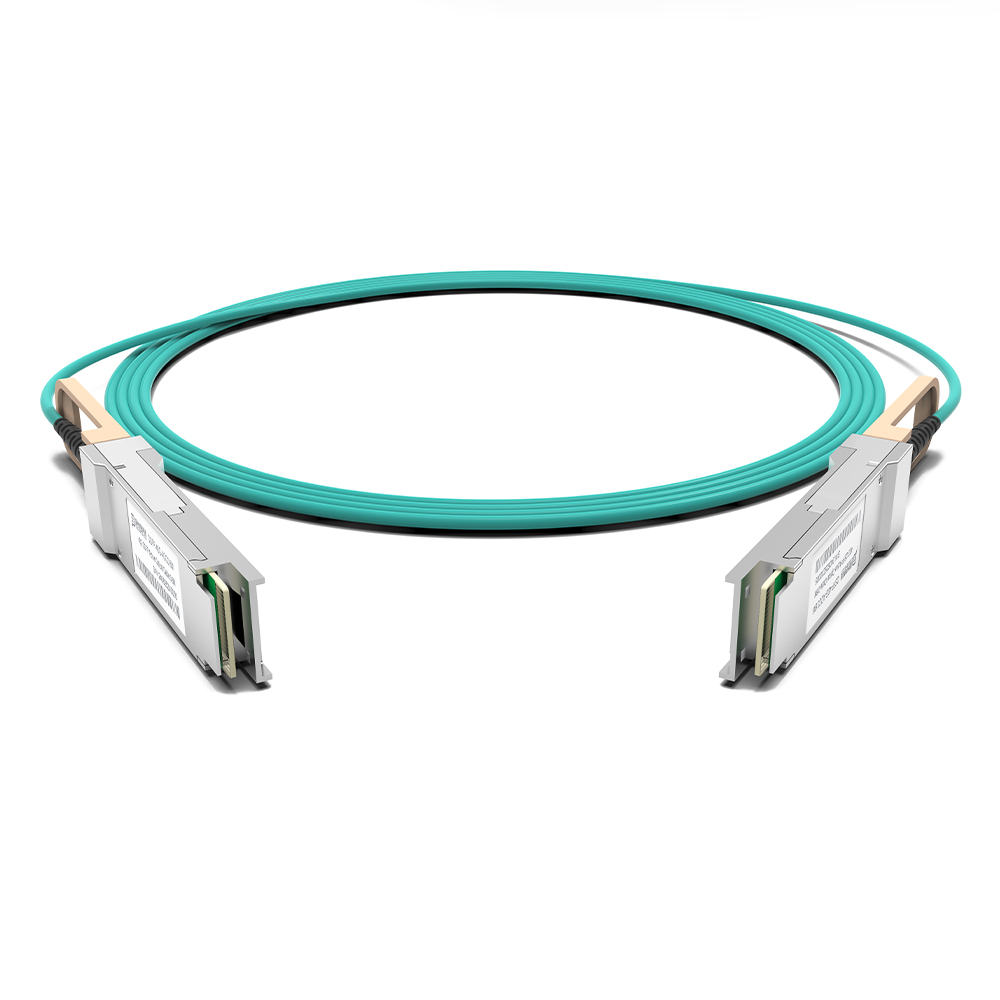

Photonics Valley’s AP40-MM85xxM is active optical cable assemblies with QSFP+ hot pluggable connectors. Enjoys low power consumption. It is suitable for short distance and offer a cost-effective way to connect within racks and across adjacent racks. Its length is up to 100m over OM3.
- Application
- Performance
- Specification
APPLICATIONS
40GBASE-SR4
InfiniBand QDR DDR SDR
Datacom and Telecom switch and router backplane
PRODUCT FEATURES
Support 40GBASE-SR4
Multi rate of up to 40Gbps
Distance up to 100m
Compliant with SFF-8436
Single power supply 3.3V
Operating case temp 0°C to +70 °C
RoHS compliant
Ordering information
Part Number | Product | Data rate | wavelength | Length | Temp |
AP40-MM85xxM | QSFP+ AOC | 40Gbps | 850nm | 1~100m | 0~70℃ |
Note: xxM denotes for length in meters, 01M for 1meter, 02M 2meters, 10M 10meters.etc..
