AP4X-MM85xxM

product description

Photonics Valley’s AP4X-MM85xxM is active optical cable assemblies with QSFP+ to 4 SFP+ hot pluggable connectors. Enjoys low power consumption. It is suitable for short distance and offer a cost-effective way to connect within racks and across adjacent racks. Its length is up to 100m over OM3.
  • Application
  • Performance
  • Specification

Applications

• 40GBASE-SR4

• InfiniBand QDR. DDR, SDR

• Datacom and Telecom switch and router backplane


Features


• Support 40GBASE-SR4

• Distance up to 100m

• Multi rate of up to 40Gbps

• QSFP+ interface compliant with SFF-8436

• SFP+ interface compliant with SFF-8431 and SFF- 8472

• Single power supply 3.3V

• Operating case temp 0°C to +70 °C

• RoHS compliant

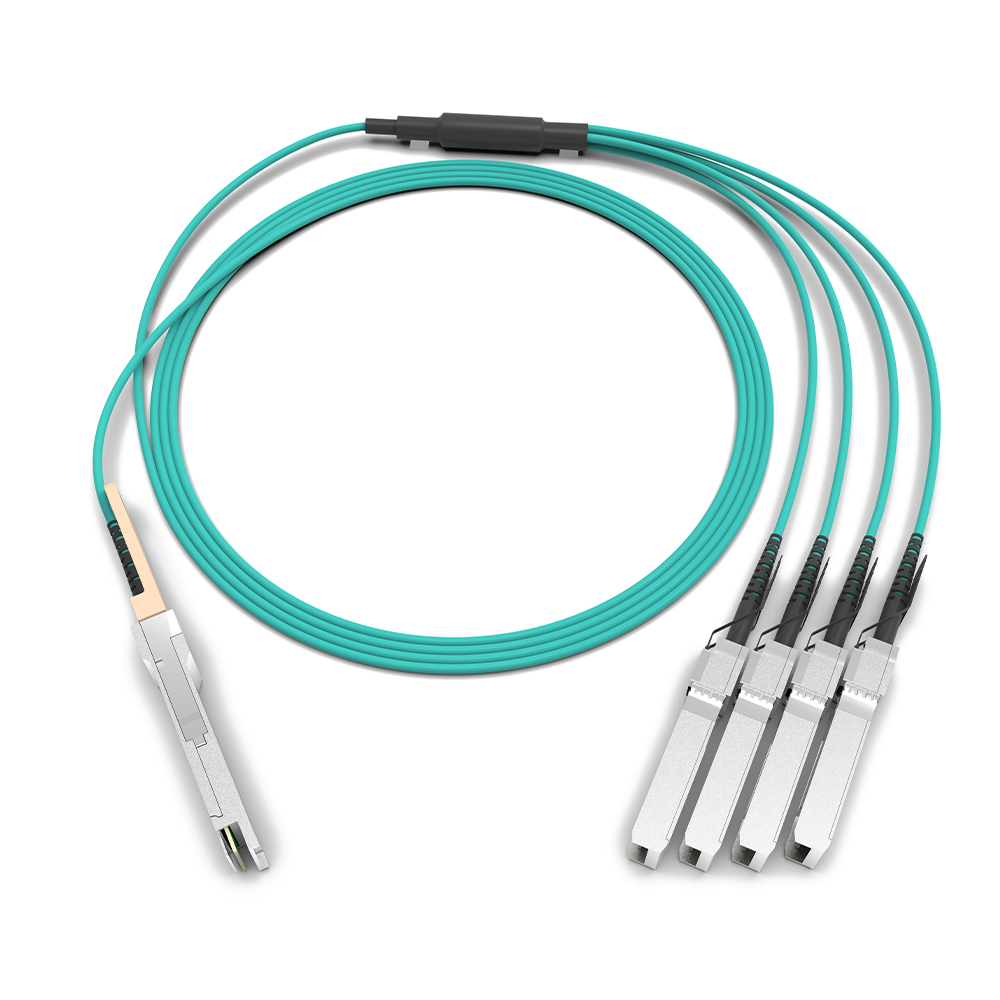

AP40-MM85xxM 40G QSFP+ AOC.png


Ordering information


Part Number

Product

Data rate

wavelength

Length

Temp

AP4X-MM85xxM

QSFP+ to 4SFP+ AOC 40G to 4*10G

850nm

1~30m


0~70


Note: xxM denotes for length in meters, 01M for 1meter, 02M 2meters, 10M 10meters.etc..
