5G Transport Network

5G Transport Network


In order to meet the 5G application scenarios, larger transmission capacity and faster transmission rate support are needed, and the optical device module needs to be upgraded accordingly, which brings huge demand for optical devices. In the 4G era, 6G / 10G Optical module is the main part in the forward transmission network. 5G network upgrades it to 25G, which brings a large amount of 25G and above optical module demand. In addition, the interface speed of convergence layer is increased from 25G / 50G to 50G / 100G; the interface speed of core layer is increased from 100G / 200G to 200G / 400G, which will further expand and upgrade.







Related Products

SP28-SM31LR10x

The SP28-SM31LR10x is SFP28 module for duplex optical data communications support 25.78 Gb/s and 28.05 Gb/s data links. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. It has built-in dual clock and data recovery (CDR). This module is designed for single-mode fiber and operates at a ominal wavelength of 1310nm.The transmitter section uses a high performance 1310nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector pre-amplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

see details

SP28-BD273310x

The Photonics Valley’s SP28-BDXXXX10X is designed for Bi-directional 25G serial optical data communications by using DFB laser transmitter and PIN receiver. It is a high performance module for 25G Ethernet and Option 10 CPRI applications which operate up to 10km. This module incorporates Photonics Valley’s proven circuit and technology to provide reliable long life, high performance, and consistent service.

see details

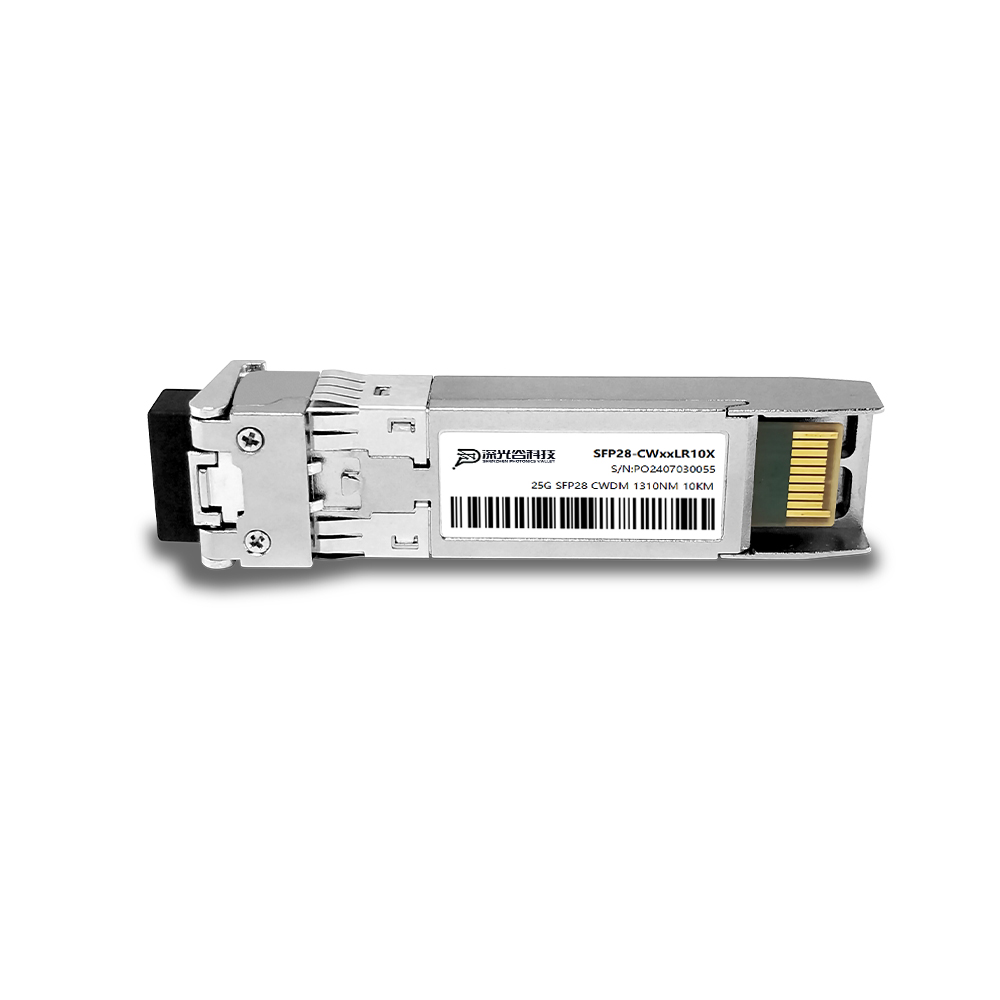

SP28-CWxxLR10x

The Photonics Valley’s SP28-CWxxLR10x is designed for CWDM 25G serial optical data communications by using DFB laser transmitter and PIN receiver. It is a high performance module for 25G Ethernet and Option 10 CPRI applications which operate up to 10km. This module incorporates Photonics Valley’s proven circuit and technology to provide reliable long life, high performance, and consistent service.

see details

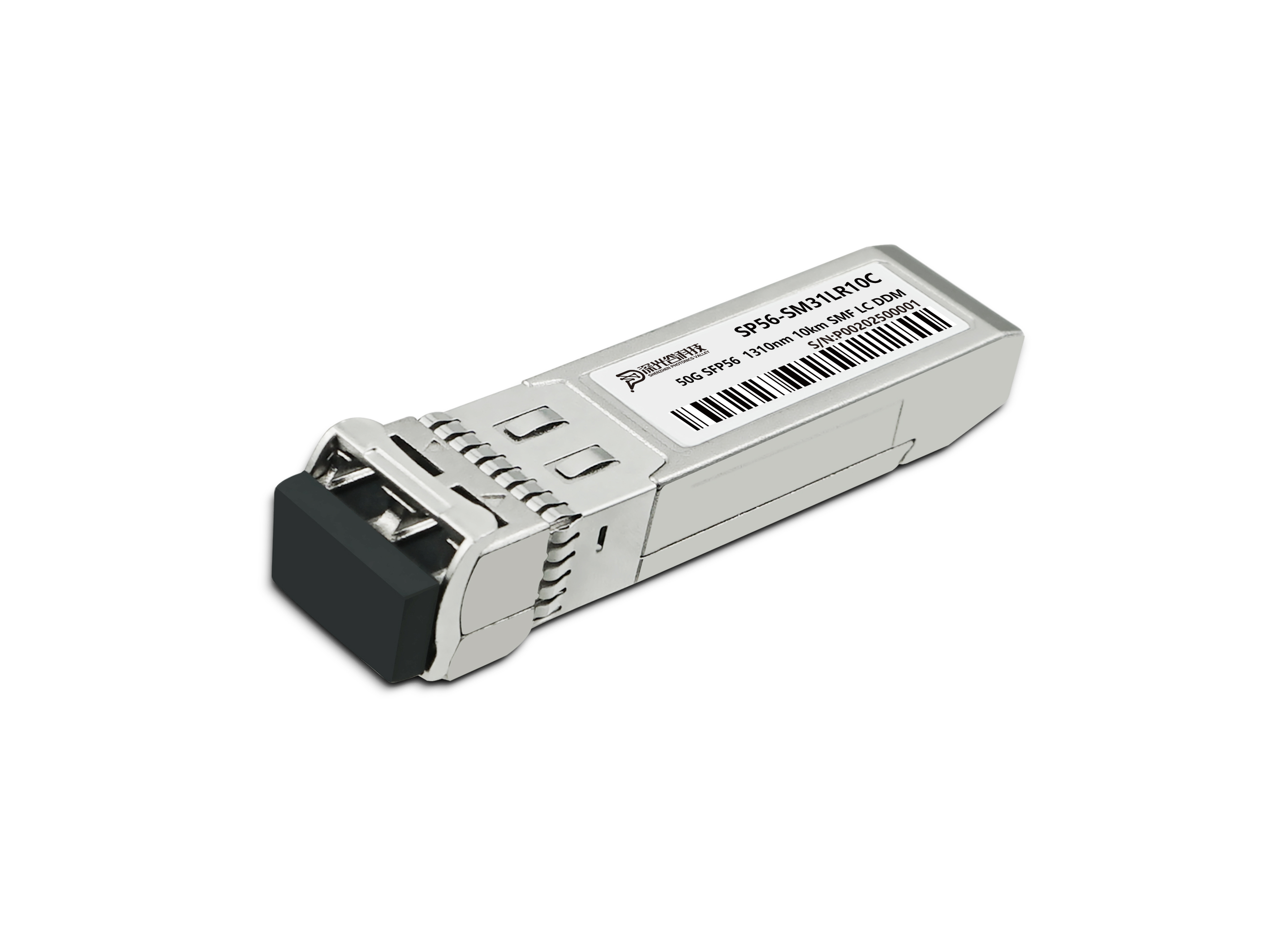

SP56-SM31LR10x

The Product Requirements Definition (PRD) is present to the critical design specification for SPV's SFP56 53G BASE LR transceiver. SFP56 transceiver design for single electrical lane with 53Gbps high speed data rate transmission. The integrated transmitter (TOSA) built by EML chip modulated with 26.5625Gbaud/s PAM4 signal, receiver embedded with linear transimpedance amplifier for PAM4 signal recover. Both transmitter and receiver need PAM4 retimer PAM4 CDR chip for better transmission performance. On board MCU handling all hardware and firmware initialization and boot loader, firmware design compliance with SFP+ module Management Interface SFF-8472.

see details
